OncoFu Elite (for RNA) Panel v1.0 targets 105 genes which are the most common or relevant to clinically significant fusions in solid tumor studies. The probes cover all transcript coding regions and some UTR regions involved in the occurrence of fus- ions which are officially included in RefSeq 109. The panel supports the enrichment of fusion, mutation, and gene expression information at the RNA level.
Gene List |
|||||||||||
ABL1*† |
ABL2 |
AKT3 |
ALK |
ARHGAP26 |
AXL |
BCL2† |
BCOR* |
BRAF |
BRD3* |
BRD4* |
CAMTA1 |
CCNB3* |
CCND1 |
CIC† |
COL6A3 |
CSF1R |
DNAJB1 |
EGFR |
EML4 |
EPC1* |
ERBB2† |
ERG* |
ESR1 |
ETS1 |
ETV1* |
ETV4 |
ETV5* |
ETV6* |
EWSR1 |
FGFR1 |
FGFR2 |
FGFR3 |
FGR* |
FLI1 |
FLT3 |
FOSB |
FOXO1 |
FUS |
GLI1 |
HMGA2 |
INSR |
JAK2* |
JAK3 |
JAZF1 |
KIF5B† |
KIT† |
KMT2A |
MAML2 |
MAST1 |
MAST2 |
MEAF6 |
MET* |
MLLT3 |
MSH2 |
MSMB† |
MUSK |
MYB |
MYC |
NCOA1* |
NCOA2* |
NOTCH1 |
NOTCH2 |
NOTCH3† |
NR4A3* |
NRG1 |
NTRK1 |
NTRK2 |
NTRK3 |
NUMBL |
NUTM1 |
PAX3 |
PAX7 |
PDGFB |
PDGFRA |
PDGFRB† |
PHF1* |
PIK3CA* |
PKN1 |
PLAG1* |
PPARG* |
PRKACA |
PRKCA |
PRKCB |
RAF1 |
RARA* |
RELA |
RET |
ROS1 |
RSPO2* |
RSPO3 |
SS18 |
STAT6* |
TAF15 |
TCF12† |
TCF3 |
TERT |
TFE3 |
TFEB |
TFG |
THADA |
TMPRSS2*† |
TP53* |
USP6* |
YWHAE* |
* Covers all 5'-UTRs; †Covers all 3'-UTRs
Performance
Capture Performance

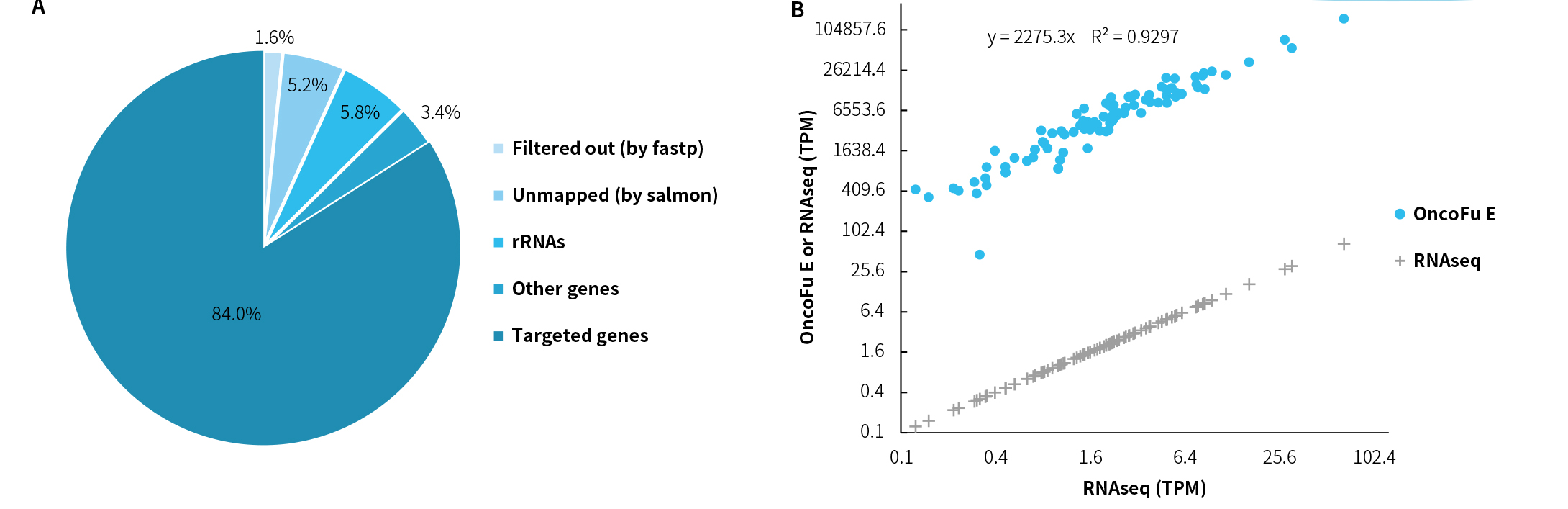

Figure 1. Capture performance of OncoFu Elite (for RNA) Panel v1.0 (OncoFu E) A. Typical capture sequencing data; B. Comparison of the relative abundan- ce of target genes between capture sequencing and RNAseq. Libraries of Human Brain Total RNA Standards (Clontech, 636530) were prepared using NadPrep Total RNA-To-DNA Module with NadPrep DNA Universal Library Preparation Kit Series, and separately carried out the direct sequencing (RNAseq) and OncoFu E capture sequencing (OncoFu E).
Gene Fusion Detection

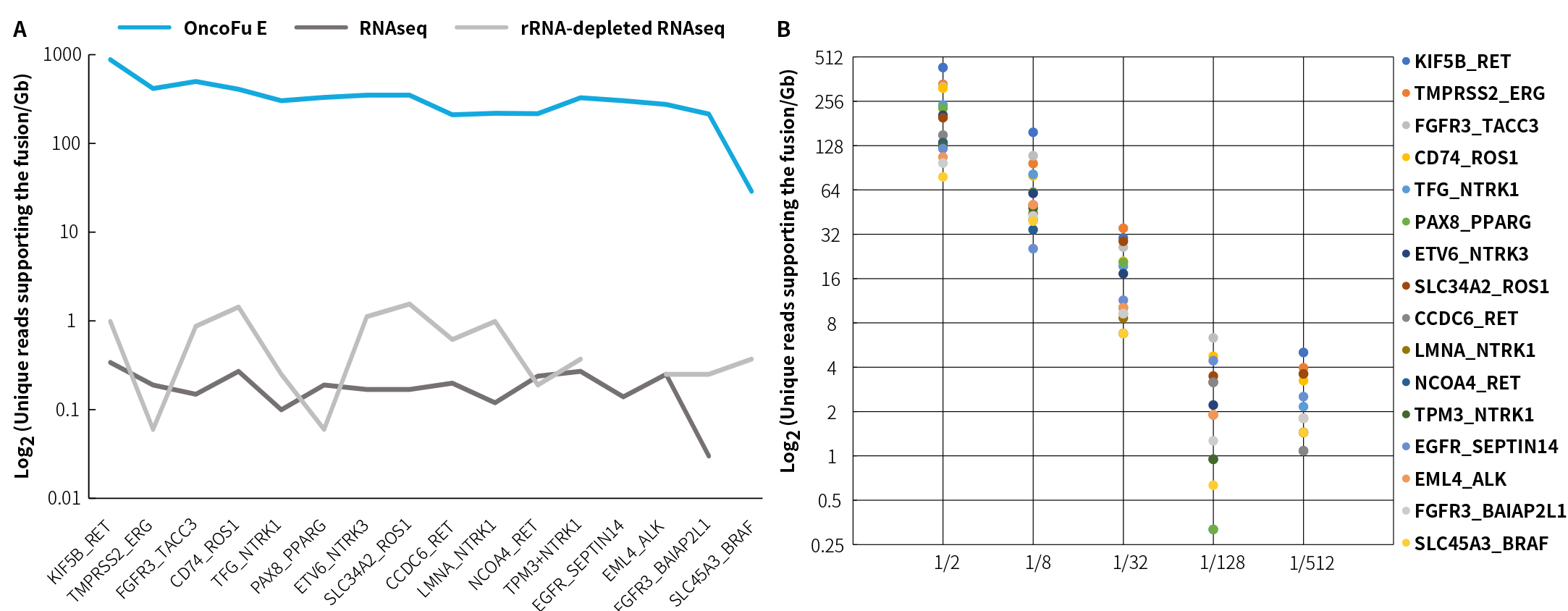

Figure 2. Fusion detection of FFPE fusion RNA standards by OncoFu Elite (for RNA) Panel v1.0.A. Comparison of OncoFu E targeted enrichment and RNAseq;B. Targeted enrichment performance of OncoFu E after multiple dilution of the standards. Libraries of 100 ng Seraseq® FFPE Tumor Fusion RNA v4 Reference Material were prepared using NadPrep Total RNA-To-DNA Module with NadPrep DNA Universal Library Preparation Kit Series, separately carried out the direct sequencing (RNAseq), rRNA-depleted RNAseq (NEBNext rRNA Depletion Kit v2), and RNA capture sequencing (OncoFu E). 1 Gb data of each library was used for fusion analysis (FusionCatcher v1.10).
Catalog |
Color of Tube Cap
|
Item |
Volume
|
Package/Storage |
1001512 |
|
OncoFu Elite (for RNA) Panel v1.0, 16 rxn |
70 μL |
-20℃ |
1001511 |
|
OncoFu Elite (for RNA) Panel v1.0, 96 rxn |
415 μL |
-20℃ |
No. This kit is
compatible only with gDNA or cDNA as initial samples. For RNA samples, reverse
transcription to generate cDNA is required prior to library preparation.
This kit supports
50-2,000 ng of gDNA or cDNA. For input amount exceeds 2,000 ng, split the
sample into multiple reactions to maintain amplification efficiency.
The main peak of
PCR products by using this kit is ~270 bp. PE150 sequencing is recommended for
high-quality coverage.
A minimum of 0.3
Gb is recommended to detect clones at 0.01% abundance with an input of 200 ng.
Increase data volume to enhance sensitivity for low-frequency clones.
Yes. This kit
includes IG Primer Mix and TR Primer Mix with gene-specific primers provided in
separate tubes, allowing flexible combination in a single amplification
reaction. With its high sensitivity, the kit meets the requirements for MRD
monitoring technology development and clinical applications, making it ideal
for low-frequency variant detection scenarios.
Product |
Catalog |
OncoFu Elite (for RNA) Panel v1.0, 16 rxn |
1001512 |
OncoFu Elite (for RNA) Panel v1.0, 96 rxn |
1001511 |
